LLT

Product Feature

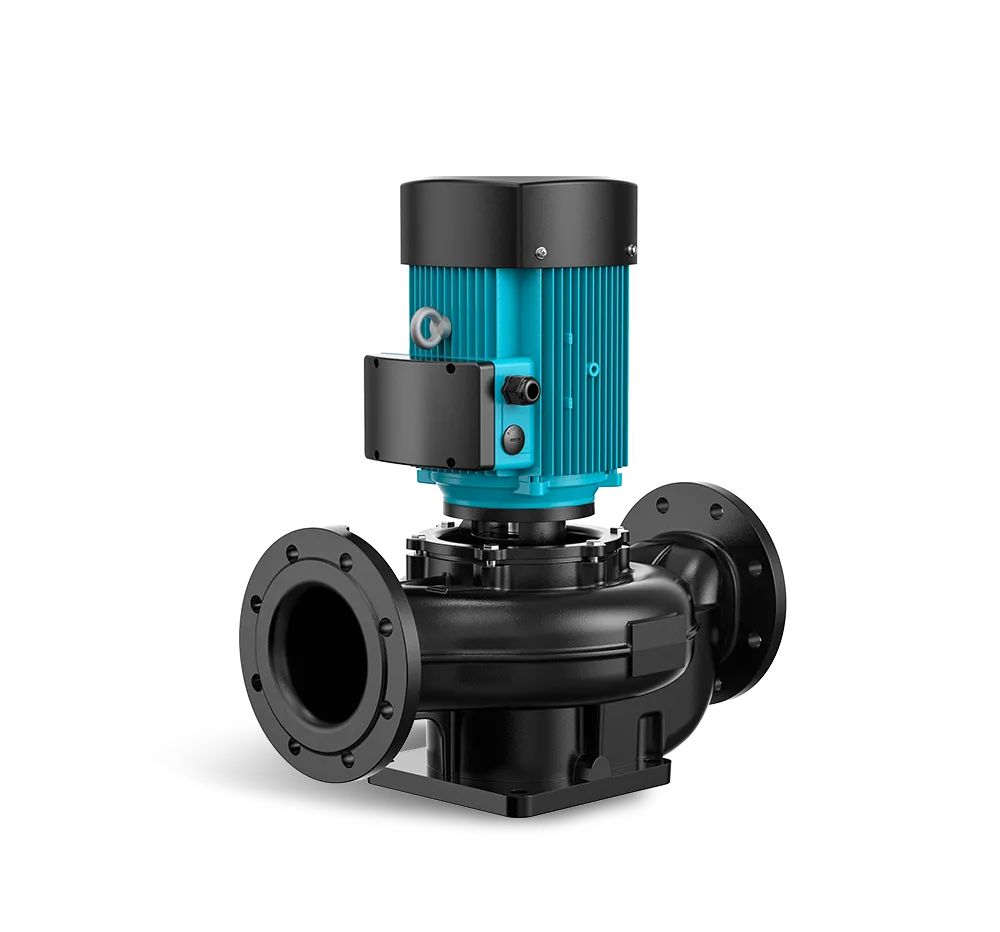

Horizontal single stage centrifugal pump for cooling water system

Large flow, low noise and high stability

High-quality machine seal to prevent water leakage from burning the machine

YE3 high-efficiency motor, protection grade IP55 , Class F

Anti-rust technology of electrophoretic coating for fuselage

Equipped with a base plate for easy maintenance

The impeller and pump shaft are made of stainless steel

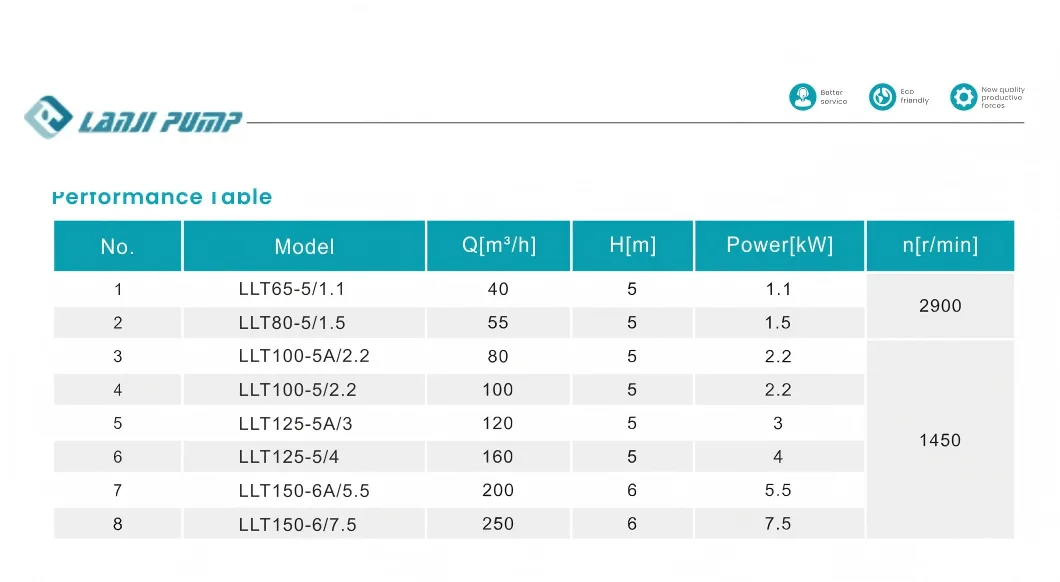

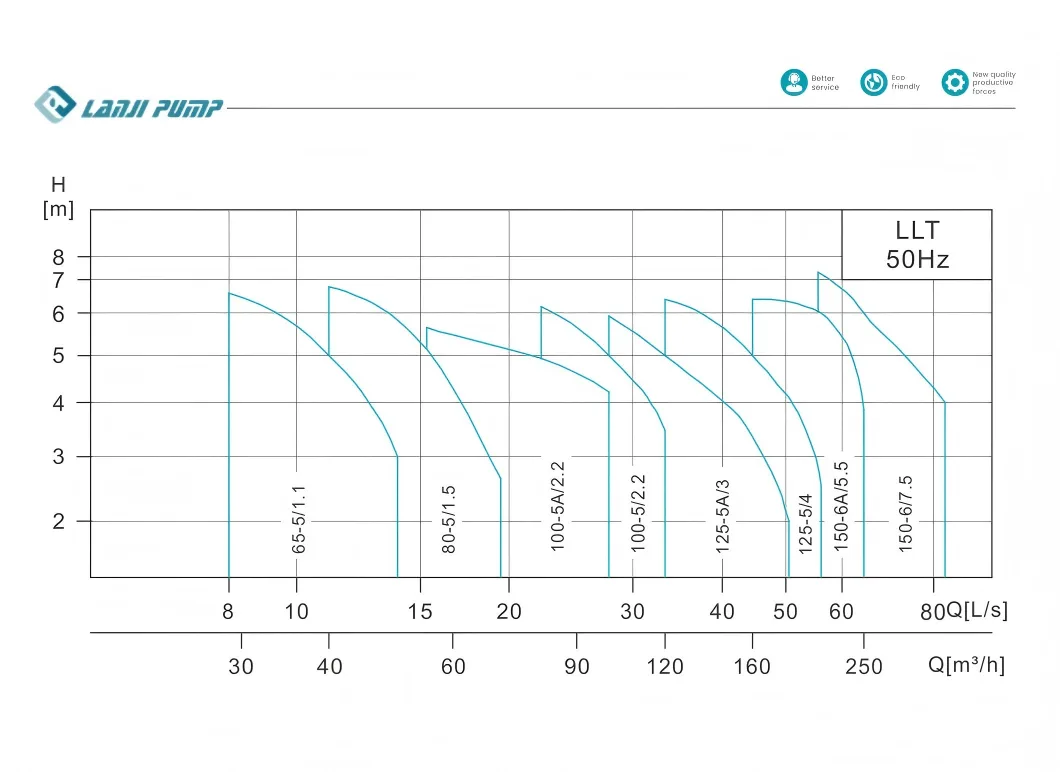

Technical Parameters
Inlet/Outlet range:DN65~DN150

Flow range:40~250m³/h

Head range:5~ 6m

Max working pressure: 6bar

Liquid temperature:-15°C~110°C
