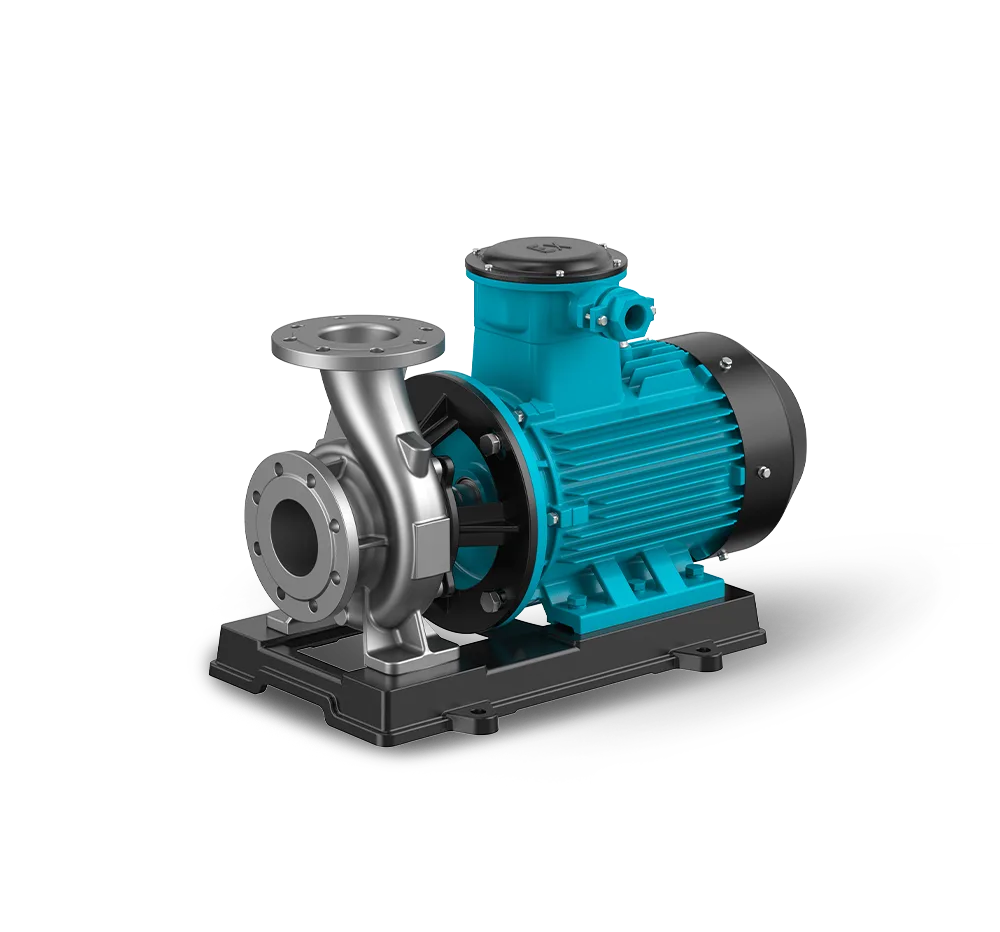

EPHBS/EPVBS

Stainless steel explosion-proof pipeline pump

Product Feature

Horizontal/vertical centrifugal pump

Explosion-proof design can transport flammable and explosive liquids such as gasoline

Stainless steel overflow parts, suitable for corrosive liquids

Large flow and high lift

Both conventional and hot water types

Pull-up design is convenient for disassembly and maintenance

YE3 high-efficiency motor, protection grade IP55 , Class F

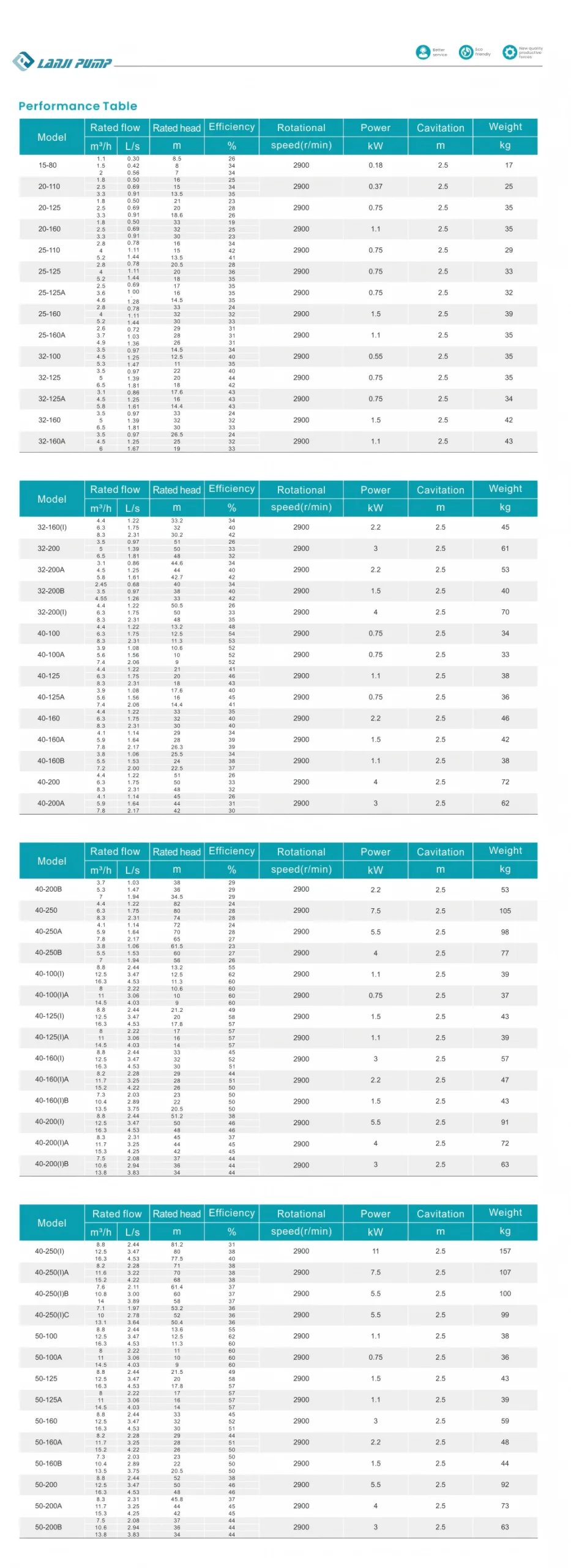

Technical Parameters

Inlet/Outlet range:DN15~DN300

Flow range:20~1200m³/h

Head range:3~ 150m

Max working pressure: 20bar

Liquid temperature:-20°C~120°C
